Home > machined > Custom Metric 316L Set Screws - M5-0.8 X 6MM Short Dog Point Socket Set Screws

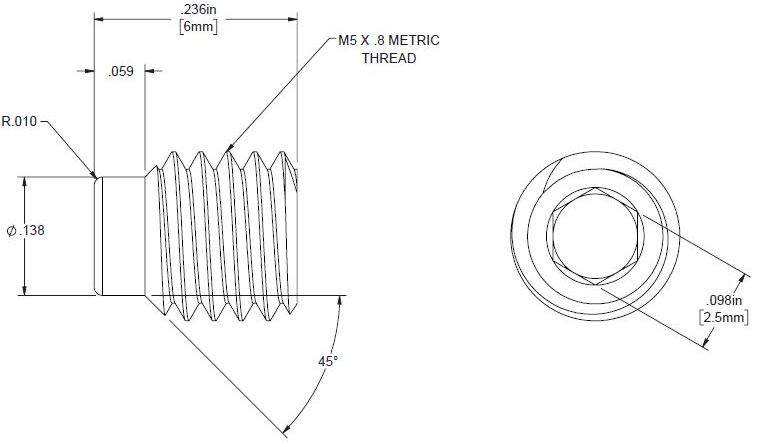

We ran an order of these custom metric 316L set screws with a short dog point at just 66 pieces using domestic production. Lead time was relatively short at just 2-3 weeks from confirmed purchase order receipt. A short .059 dog point was incorporated and a 2.5MM hex socket drive was broached for speed and cost efficiency. Overall length was set at 2.36 inches and the tolerance on all dimensions was set at +/- .005 inches. Great detail can be seen in the print included here as a reference.


Our relationships with production facilities all over the United States and abroad based on decades of custom hardware & fastener production history, in combination with the flexibility of blanket purchase arrangements, allows us to fully cater to the customer’s hardware specification and procurement requirements.
