We supply our customer base with both individually racked and barrel chrome plated screws, with the individually racked option used for any parts that will have a critical visual cosmetic component (as in guitars, hand guns, watches, etc). Barrel chrome plating is a more cost effective approach for parts that need the additional corrosion resistance but do not need to have a perfect cosmetic appearance in their application. Both standard chromium plated and tin-cobalt plated parts are available, with both RoHS compliant. The tin-cobalt plated screws are typically manufactured and plated overseas, with most of our current selection made using 316 stainless steel material and then barrel plated with tin-cobalt chrome.
|
|
-
These are custom chrome plated 316 stainless sheet metal screws with tin-cobalt RoHS compliant chrome plate finish, with the 316 stainless steel designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these type A 12-11 X 1-1/4 phil pan sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish. Tin cobalt finish typically provides a slightly duller chrome finish than the traditional hexavalent chromium plating. All the custom tin cobalt plated parts we supply are electroplated with a bright nickel under-plate for improved longevity and appearance.
-
These chrome plated 316 stainless steel (easy to distinguish with the stamped dot at the flat head to designate the 316) sheet metal screws were barrel plated at approximately 30,000 pieces. We stock these parts for our customer on a blanket purchase basis and release as needed throughout the year.
-
These chrome plated phil pan hi-lo screws were manufactured overseas at approximately 50,000 pcs and supplied to our customer on a revolving blanket purchase order basis. They measure #10-16 X 3/4" and are identical outside of the length to the #10-16 X 1/2 version we have supplied for a number of years already. 316 stainless steel material is used for optimal corrosion resistance, which is further enhanced with the chrome plating for use in highly corrosive environments.
-
These are custom 316 stainless steel sheet metal screws with tin-cobalt RoHS compliant chrome plate finish, with the 316 stainless steel designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these type A 6 X 5/8 phil pan sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish. Tin cobalt finish typically provides a slightly duller chrome finish than the traditional hexavalent chromium plating. All the custom tin cobalt plated parts we supply are electroplated with a bright nickel under-plate for improved longevity and appearance.
-
These are custom 316 stainless steel truss head sheet metal screws with tin-cobalt RoHS compliant chrome plate finish, with the 316 stainless steel designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these type A 10-12 X 3/4 phil pan sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish. Tin cobalt finish typically provides a slightly duller chrome finish than the traditional hexavalent chromium plating. All the custom tin cobalt plated parts we supply are electroplated with a bright nickel under-plate for improved longevity and appearance.
-

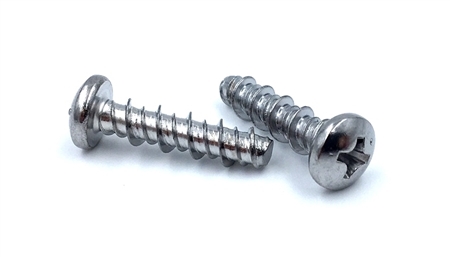

The specific screws pictured here are custom chrome plated pan head screws with Type A thread measuring 6 X 5/8. For fast turnaround they were barrel plated domestically with RoHS compliant chromium, at a lead time of 3-4 weeks. The plain part itself is custom made to print using 316 stainless steel material, with production taking place domestically within the USA as well.
-
These are custom chrome plated screws made using the barrel plating process done domestically in the USA. They are type A sheet metal screws made in 316 stainless steel material specifically to our customer's print. The overall process to manufacture the screws and to get them barrel chrome plated took approximately 12 weeks. Depending on the volume involved we can work out the ideal domestic or overseas strategy for any chrome plated parts, both RoHS and non-RoHS compliant.
-
The parts pictured here are 8-19 X 1-1/4 hi lo thread forming screws. They are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency, while still producing a very attractive cosmetic finish. Tin cobalt finish typically provides a slightly duller chrome finish than the traditional hexavalent chromium plating. All the custom tin cobalt plated parts we supply are electroplated with a bright nickel under-plate for improved longevity and appearance.
-
These are custom tin cobalt plated 10-32 X 1 machine screws made using type 316 stainless steel, designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these phil truss machine screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
-
These are custom type A tin cobalt plated sheet metal screws made using type 316 stainless steel, designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these type A sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
-
These are 316 stainless custom type A sheet metal screws with tin-cobalt RoHS compliant chrome plate finish, with the 316 stainless steel designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these 6-18 X 3/8 phil flat sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
-
These are custom tin cobalt plated machine screws made using type 316 stainless steel, designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these machine screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
-
These are custom type A tin cobalt chrome plated sheet metal screws made using type 316 stainless steel, designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these type A 6 X 3/8 phil flat sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
-
These are 316 stainless custom type A sheet metal screws with tin-cobalt RoHS compliant chrome plate finish, with the 316 stainless steel designated by a dot on the head of each screw. Like the other custom tin cobalt chrome plated screws, these 10-12 X 1 type A phil flat sheet metal screws are manufactured overseas and supplied to our long time customer on a revolving blanket purchase order basis. The tin cobalt chrome plating is done in a barrel plate format for improved cost efficiency while still producing a very attractive cosmetic finish.
|
