We have supplied custom bent anchor bolts in an endless array of materials, from simple low carbon steel to exotics. Small diameter, large diameter, metric, and inch standards are a daily routine for us and both rolled and cut threads are available. Countless finish types are available, from HDG to dacromet and Xylan coated parts. Both domestic and overseas production options at your disposal.

For higher volume custom threaded studs blanket purchase orders are ideal, allowing you to lock in better high volume pricing while spreading out your usage and cash outlay over the coarse of the year.


CALL US WITH YOUR INQUIRIES AT (866) 243-3044 OR EMAIL US AT SALES@ENGINEEREDSOURCE.COM

  • Custom 316 SS Bent Anchor Rods - Per AMS 5648

    These are custom 316 SS bent anchor rods per AMS 5648 we provided our aerospace customer.  130 pieces were domestically produced with a lead time of 4-5 weeks.  Material certs, First Article Inspection Report (FAIR), and a certificate of conformance was provided with the parts as well.  1/4-20 thread was incorporated at 2.25" in length, with the long leg overall length measuring at 5".

  • Custom ACME Thread Studs - 1-1/4" in A108 Steel Material

    These are custom large ACME thread studs we supplied our customer in two different lengths: 2 ft 11 inch and 3 ft 5 inch. Both lengths were fully threaded with 1-1/4" ACME thread. 3 custom tapped heavy hex nuts per piece were supplied with the threaded studs. Parts were made in the USA and were supplied with material certs.

  • Custom Bent Anchor Bolts - 1/2 X 5" Bent Concrete Anchor Bolts in A449 Plain Steel Material

    One of the custom bent anchor bolts we have supplied to our construction customer at 12 pieces in April.  Plain A449 material was used and the parts were ready to ship within 6 business days from order.  1/2 bar material was used and approximately 2 inches of coarse thread was incorporated on each leg.  One leg was set at 3" and the other at 5" overall length from the inside of the bend.  Faster lead time was made available with an expedite option.

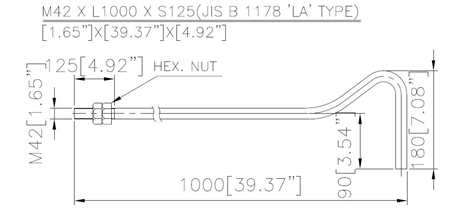

  • Custom Construction Bent Anchors - 1-1/4" by 39.37" In A36 Material

    These custom construction bent anchors were manufactured domestically using A36 material with plain finish.  1-1/4" bar stock was used and the threaded portion was turned down to allow for cutting M42 thread.  Overall length was set at 1,000MM or 39.37", with the outside hook measuring 180MM.  Tricky part to bend within tolerance but ended up turning out great.  Two heavy hex nuts and washers per anchor bolt were included with the shipment.

  • Custom Domestic L Anchor Bolts - ASTM A675 Grade 80

    We supplied approximately 450 pieces of these custom domestic L anchor bolts to our construction engineering customer, with full certs.  The parts had to be domestic made using domestic melt material as well in ASTM A675 Grade 80 steel, with plain finish.  1/2-13 thread was incorporated on the 15" long leg, with 13.5" of actual thread - having to cut this length of thread on each piece made the production process significantly slower.  The short leg measured 2".

  • Custom Galvanized Anchor Bolts - A36 Steel, Galvanized

    These custom galvanized anchor bolts were manufactured domestically with a rush timeline using A36 steel material with a galvanized finish.  7 inches of 1"-8 coarse thread was incorporate on the long leg, with cut thread as opposed to a rolled alternative.  Overall length was set at 17" and the length of the short leg on the outside is 3".  Two galvanized nuts and washers were supplied per anchor bolt.

  • Custom J-Bolts - 1/2 X 10-3/4 In A36 Plain Steel Material

    Custom J-Bolts made domestically using A36 material without any finish.  Our customer needed just 18 pieces urgently and we were able to get them made and shipped within 4 days of order.  1/2 inch bar stock was used with 1-1/4" inside width on the J-turn and 1-3/4" on the short leg.

    Large quantities of these custom made J-bolts would be best supplied on a 12 month blanket purchase order basis.  The Blanket Order concept allows the customer to access the large quantity cost savings without paying upfront for the entire large quantity order. Instead we take on the burden of carrying the bulk inventory and only release the parts as needed, or often on a pre-scheduled basis provided by the customer.

  • Custom Lag Thread Bent Anchors - Steel Zinc Material

    These custom lag thread bent anchors were manufactured for a woodworking company in Hawaii that required lag screw thread on the long leg and a cosmetically appealing zinc clear finish. CD-C1018 material was used at a 1/4" in diameter, with a 90 degree bend. The short leg measured 3/4" in length on the inside and the long leg at 5" overall including the 3/4" of lag screw thread.

  • Custom Large Anchor Bolts - F1554 Grade 36 Material, Galvanized

    These custom galvanized anchor bolts were manufactured domestically with a rush timeline using A36 steel material with a galvanized finish.  7 inches of 1"-8 coarse thread was incorporate on the long leg, with cut thread as opposed to a rolled alternative.  Overall length was set at 17" and the length of the short leg on the outside is 3".  Two galvanized nuts and washers were supplied per anchor bolt.
